Electronic Pipeline Technology (EP-Tech)

Providers of equipment for Pipelines and Corrosion Control Engineers. EP-Tech is committed to providing safe and reliable products which meet in all respects the specifications required for corrosion monitoring and control of the highest quality.

Product Catalog

The EP-Tech portfolio features leading-edge pipeline and cathodic protection equipment.

Hexlogger "EPT/HEX-4000"
Hexlogger is the latest in fine GPS Electronic Technology for Pipepeline coating survey. DCVG Surveyor Holiday Detector

Model#:
EPT/HEX-4000

Hexlogger EPT-4000 pdf Operation manual »

DCVG Surveyor Holiday Detector
A sophisticated electronic Milli-voltmeter DCVG Surveyor Holiday Detector

Model#:
EPT-4000

DCVG Surveyor Holiday Detector pdf Brochure »

GPS Synchronized Smart Data Logger
A sophisticated synchronized Smart Data Logger equipped with GPS Engine GPS Synchronized Smart Data Logger

Model#:
SMA-4000

GPS Synchronized Smart Data Logger pdf Brochure »

GPS Current Interrupter
We have different ranges of GPS Current Interrupters from 15 - 300 AMP GPS Current Interrupter

Model#s:
EPT/CI-15
EPT/CI-25
EPT/CI-50
EPT/CI-100

GPS Current interrupter pdf Brochure »

Soil Test Resistance Meter
A sophisticated electronic digital null meter Soil Test Resistance Meter

Model#:
EPT/124F

Soil Test Resistance Meter pdf Brochure »

High Voltage Holiday Detector
A sophisticated electronic Milli-voltmeter High Voltage Holiday Detector

Model#:
EPT/AC- 16
EPT/AC- 20
EPT/AC- 30

High Voltage Holiday Detector pdf Brochure »

Pearson Coating Test Holiday Detector
A sophisticated electronic receiver with high input resistance that is able to detect low audio AC voltage gradients (ACVG) and provide easy methods of finding any coat defect in a pipeline. Pearson Coating Test Holiday Detector

Model#:
EPT-1000C

Pearson Coating Test Holiday Detector pdf Brochure »

Polarization Cell Replacement (PCR)
PCR Solid State Device “SSD” can decouple DC Cathodic Protection Potential from AC interference and AC continuing / Grounding while CP requirement will be less. Polarization Cell Replacement

Model#:
EPT/SSD-ATEX-50, EPT/SSD-ATEX-100

Polarization Cell Replacement pdf Brochure »

Pipe and Cable Locator
A sophisticated electronic receiver that is equipped with a search coil and is able to detect coated pipeline signal for a great distance by using null method theory. Pipe and Cable Locator

Model#:
EPT-1000C

Pipe and Cable Locator pdf Brochure »

Digital Corrosion Meters

Digital CP Multimeter
The Digital CP Multimeter is used for cathodic protection monitoring, CP Pipeline survey and in the field. Digital CP Multimeter

Model#:
EPT/LC-200

Digital CP Multimeter pdf Brochure »

Digital CP Voltmeter
The Digital CP Voltmeter is suitable for measuring pipe to soil potential of buried pipelines or other metallic structures. Digital CP Voltmeter

Model#:
EPT/DPM-20

Digital CP Voltmeter pdf Brochure »

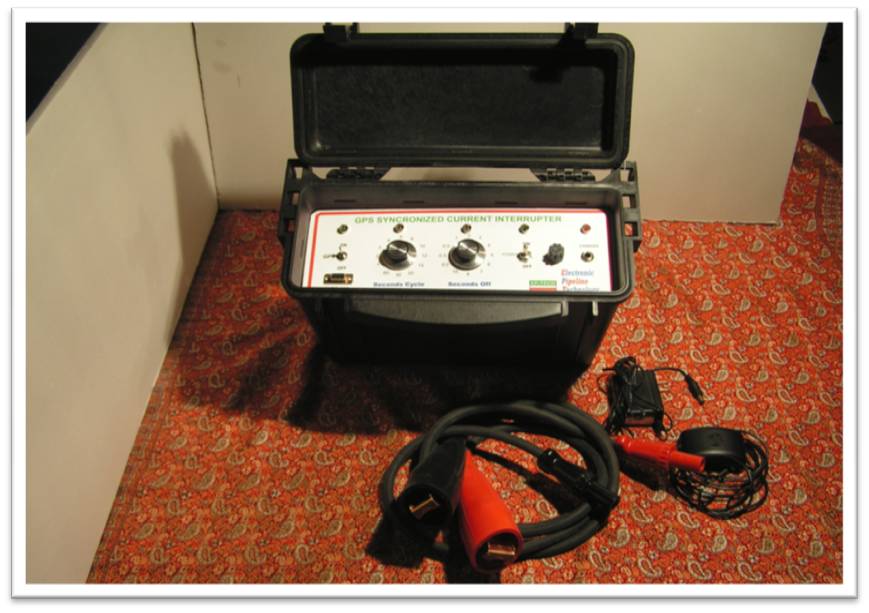

GPS Current Interrupter

We have different ranges of GPS Current Interrupters from 15 - 300 AMP.

Product Overview

GPS Current Interrupter

Models:
EPT/CI-15
EPT/CI-25
EPT/CI-50
EPT/CI-100

Typical Application

Current Interrupters need to turn ON and OFF the Rectifiers power for cathodic protection survey sources. Measurement of ON and OFF potential, shows a good explanation of the level of the protection of the Pipelines. We have different ranges of GPS Current Interrupters, they are "15, 25, 50, 100, 200, and 300" AMP. All EP-TECH current interrupters are equipped with Global Positioning System (GPS) engines for precise interruption synchronization. The GPS engine is on at all times to ensure 200 nanosecond timing synchronization.

Technical Information and Features

GPS Current Interrupter
  • satellites visible and it works in all parts of the world
  • Magnet mounts GPS Antenna
  • GPS lock indicator
  • RS 232 port to connect to PC for UTC time, date, and coordinates
  • Programmable or Selectable Interruption program models
  • Manual and GPS Synchronized Mode and Compatible with NACE Standard Logic
  • Rechargeable long life battery
  • Resynchronized every 1-minute and remains synchronized
  • Waterproof and heavy-duty box
  • 5 program capability
  • Programmable start and stop time
  • Programmable start and stop date
  • Hold rectifier power ON when not interrupting
  • 1 year Warranty from the date of purchase against defective component and faulty workmanship
