Electronic Pipeline Technology (EP-Tech)

Providers of equipment for Pipelines and Corrosion Control Engineers. EP-Tech is committed to providing safe and reliable products which meet in all respects the specifications required for corrosion monitoring and control of the highest quality.

Product Catalog

The EP-Tech portfolio features leading-edge pipeline and cathodic protection equipment.

Hexlogger is the latest in fine GPS Electronic Technology for Pipepeline coating survey. DCVG Surveyor Holiday Detector

Model#:
EPT/HEX-4000


Hexlogger EPT-4000 pdf Operation manual »

A sophisticated electronic Milli-voltmeter DCVG  Surveyor Holiday Detector

Model#:
EPT-4000


DCVG Surveyor Holiday Detector pdf Brochure »

A sophisticated synchronized Smart Data Logger equipped with GPS Engine GPS Synchronized Smart Data Logger

Model#:
SMA-4000


GPS Synchronized Smart Data Logger pdf Brochure »

We have different ranges of GPS Current Interrupters from 15 - 300 AMP GPS Current Interrupter

Model#s:
EPT/CI-15
EPT/CI-25
EPT/CI-50
EPT/CI-100


GPS Current interrupter pdf Brochure »

A sophisticated electronic digital null meter Soil Test Resistance Meter

Model#:
EPT/124F


Soil Test Resistance Meter pdf Brochure »

A sophisticated electronic receiver with high input resistance that is able to detect low audio AC voltage gradients (ACVG) and provide easy methods of finding any coat defect in a pipeline. Pearson Coating Test Holiday Detector

Model#:
EPT-1000C


Pearson Coating Test Holiday Detector pdf Brochure »

A sophisticated electronic receiver that is equipped with a search coil and is able to detect coated pipeline signal for a great distance by using null method theory. Pipe and Cable Locator

Model#:
EPT-1000C


Pipe and Cable Locator pdf Brochure »

Digital Corrosion Meters

The Digital CP Multimeter is used for cathodic protection monitoring, CP Pipeline survey and in the field. Digital CP Multimeter

Model#:
EPT/LC-200


Digital CP Multimeter pdf Brochure »

The Digital CP Voltmeter is suitable for measuring pipe to soil potential of buried pipelines or other metallic structures. Digital CP Voltmeter

Model#:
EPT/DPM-20


Digital CP Voltmeter pdf Brochure »

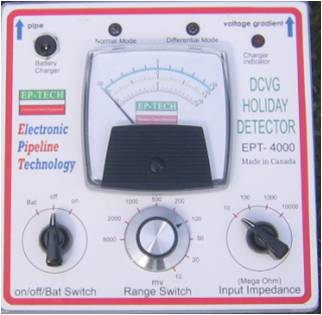

DCVG Surveyor Holiday Detector

The DCVG Surveyor Holiday Detector is a sophisticated electronic Milli-voltmeter with a 20000 Mega-Ohm input resistance.

Product Overview

DCVG  Surveyor Holiday Detector

Model: EPT-4000

Typical Applications

Analog DCVG Holiday detector is able to detect very low voltage gradients and provide easy methods of finding any coat defect in a pipeline by using analog panel meter. Not only is DCVG Holiday Detector able to show the ON and OFF voltage gradient of a pipeline, but it's also able to show the difference between ON and OFF in interruption mode.

DCVG  Surveyor Holiday Detector

It is powerful and an accurate equipment for detecting and tracking the escaping currents of the pipelines.

Special Features

DCVG  Surveyor Holiday Detector
  • Robust and fully portable
  • Waterproof box
  • Highly accurate of finding Coating defect and ability to find 1 "volt" voltage gradient
  • Ability to work as a side drain direction current detector
  • Easy to use by one operator
  • Easy to use in deserts, on asphalt/concrete
  • Highest input resistance in the world (20000 Mega Ohm)
  • Stabilized and filtrated against AC and stray currents
  • Locates electrical short circuits
  • Flexible pogo sticks
  • High impedance Reference Electrodes (Cu/CuSO4)
  • Chargeable batteries and indicators
